61020B Veterinary Anesthesia Machine

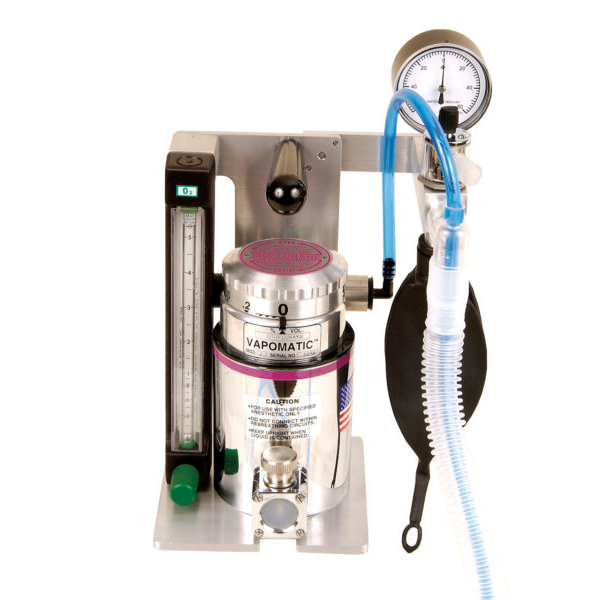

The Bickford 61020 Non-Rebreathing Table Top Anesthesia Machine with Bain Block is ideally suited for procedures on animals 10 lbs or less (rats or mice in the laboratory, or exotic animals).  The compact lightweight design is easy to move and requires minimal counter space in the surgical suite.

The machine includes the BICKFORD VAPOMATIC VAPORIZER, which is temperature-compensated, with tamperproof adjustments and standard 23mm male and female tapers. Available in ISOFLURANE or SEVOFLURANE.

The machine is equipped with a high-precision flowmeter and needle valve that provides 0.2 to 5.0 liters per minute of oxygen. The flowmeter components are protected and mounted in a forged aluminum housing. The standard D.I.S.S. (Diameter Index Safety System) male connection on the back of the flowmeter offers additional safety to you and your animal patients.

Designed, manufactured, and serviced in the U.S.A.


  • Vapomatic™ Vaporizer Included
  • Easy to grip handle
  • Oxygen only
  • D.I.S.S. Inlet Connection
  • Oxygen Flowmeter
  • Deluxe Bain Block.
  • Customer may substitute a  0-1 L/M flowmeter by specifying it with order
  • 06800 Bain Circuit Sold Separately

Call to Order 1-800-795-3062

Vapomatic™ Vaporizer

  • Temperature compensated.
  • Output concentration stable during assisted respiration pressure pulses.
  • Filler-drain-contents window combined in easy access single unit.
  • Large dial with easy to see numbers has “off” lock and calibration indents.
  • Dial Rotation: CW to decrease and “off” CCaW for “on” and increase.
  • “Off” Position locks to prevent accidental actuation of vaporizer.
  • When “Off”, vaporizing chamber is isolated and gas is bypassed to outlet.
  • Tamperproof adjustments – dial seal must be broken for access.
  • Sump may be removed for cleaning or wick replacement without disturbing calibration by removing one screw.
  • Inlet and Outlet fittings are standard 23mm male & female tapers and are individually replaceable. Other connector options are available upon request.
  • Mounting holes in rear are interchangeable with other vaporizers.

Vapomatic™ Performance & Specifications

  • Range of gas flow rates: 0.1 to 10 liters/minute.
  • Range of ambient temperatures: 60°F to 90°F.
  • Range of anesthetic concentration: 0.5% vol.
  • Models available for Isoflurane or Sevoflurane.
  • Calibration accuracy: ±.1% concentration or ±10% of dial setting at calibration points.
  • Liquid capacity (dry): Approximately 200 ml.
  • Weight (dry): Approximately 7.5 lb.
