PC-2C Non Rebreathing System

Description

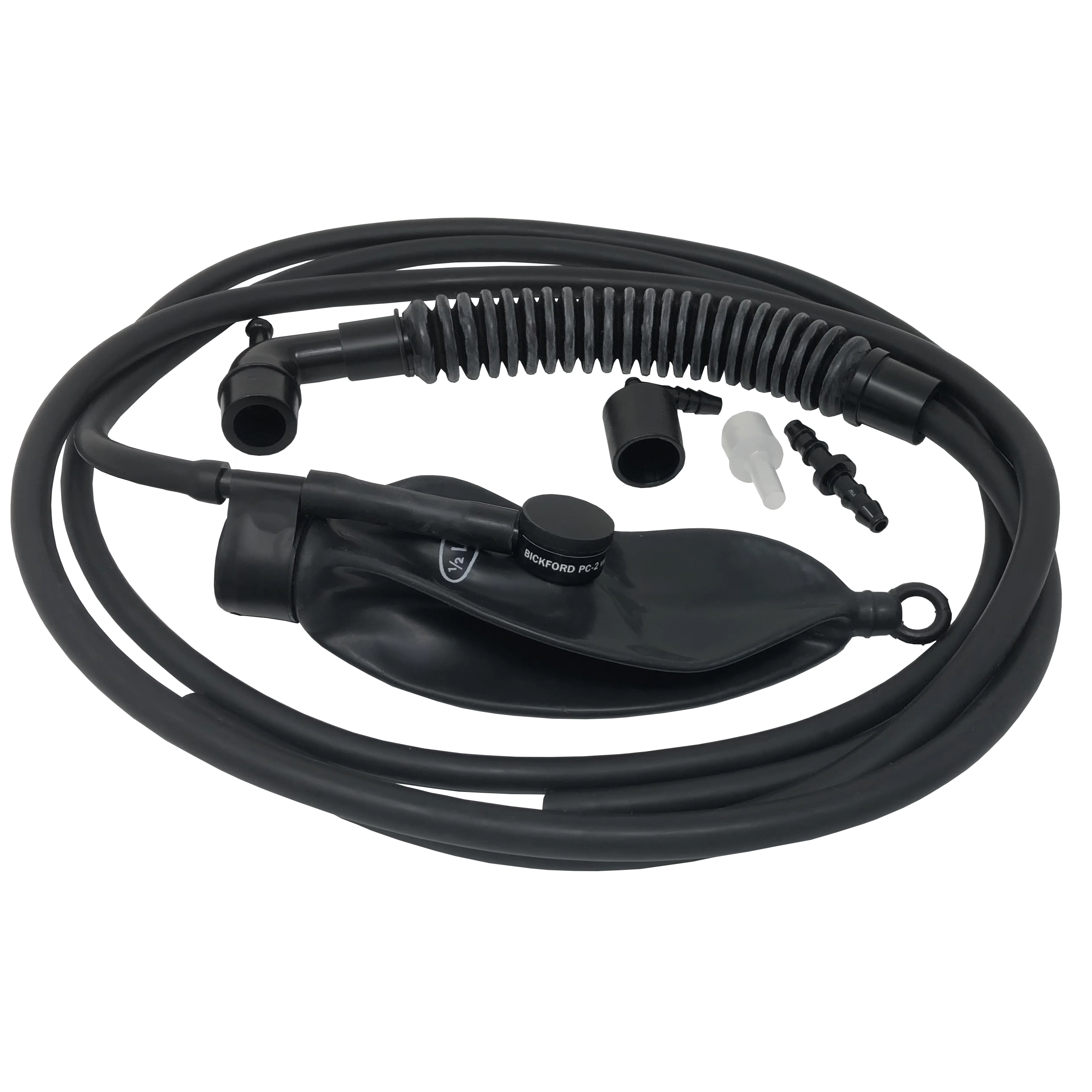

A.M. Bickford PC-2C non-rebreathing system delivers precise, controlled, and efficient anesthesia to small animal patient with less than 10 pounds body weight. Shipped fully assembled, PC-2C non-rebreathing system includes everything needed for immediate use including a pediatric extension tube. PC-2C non-rebreathing system is a critical component for a successful surgery, since they are a direct extension of the anesthesia machine to the patient. Inspect the system before and after use. Replacement parts readily available.

PC-2C half liter breathing bag system is equipped with a custom-made 23mm vaporizer outlet connector, simplifying the connection to your fresh gas supply. This ensures a seamless operation, reducing setup time and allowing you to focus on patient care.

Non-rebreathing mask elbow is an essential component designed to connect seamlessly with a 1/2-liter breathing bag or pediatric extension tube. This versatile elbow features a standard connection, making it compatible with both veterinary anesthesia masks and endotracheal tubes. Its reliable design ensures a secure fit, providing an efficient and controlled delivery of anesthesia and conducts waste gas anesthesia away from the patient during veterinary procedures.

The unique side-vented breathing bag design offers significant advantages, particularly in critical situations. The placement of the PC-2 valve allows for effortless one-hand resuscitation—simply apply thumb pressure while squeezing the bag. This ergonomic setup ensures you can maintain control and respond quickly during procedures.

Product Information

Breathing Bag: 1/2 liter
Pediatric Extension Tube
- Length: 6 inches
- 5/8″ diameter
- 22mm and 15mm ends
Mask Elbow: Standard Connections
Tubing: Fresh Air Supply & Waste Gas Anesthesia discharge
Connections: 23mm vaporizer outlet, tubing splicer & 6mm endo tube connector

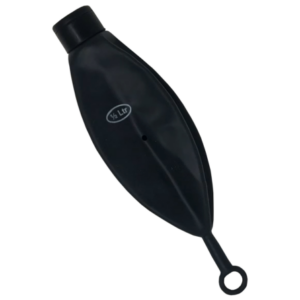

Replacement 1/2 Liter Breathing Bag without PC-2 Valve.

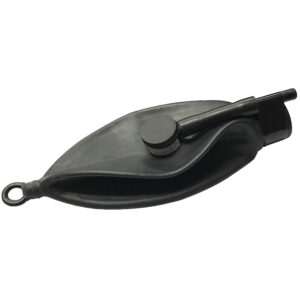

Replacement 1/2 Liter Breathing Bag with PC-2 Valve
Non-Rebreathing Flyer

The PC-2C non-rebreathing system can be purchased directly through A.M. Bickford. For pricing, click the “REQUEST QUOTE” button.

Bickford PC-2 Non-Rebreathing Product Video

Components Assemblies

80110 1 Liter Breathing Bag with PC-2 valve and tube terminal.
80111 1⁄2 Liter Breathing Bag, with PC-2 valve, and tube terminal.
1. 80101 10” x 5⁄8″ Pediatric Extension Tube, with 15mm female end and 22mm male ends.
2. 80102 6″ x 5⁄8″ Pediatric Extension Tube, with 15mm female end and 22mm male ends.
3. 80103 Mask Elbow with gas inlet tube for 3⁄16″ or 1⁄4″ tubing and 7⁄8″ distal end.
4. 80104 Bag Adapter, 22mm or 7⁄8″ bag neck to 15mm female.
5. 06114 Mask Elbow with gas inlet tube, connects to 3⁄16″ I.D. tubing.
6. 80106 PC-2 Valve Complete. Installs in 3⁄16″ breathing bag hole.
7. 80107 Mounting Block, supports tube (8) on bag adapter, forming tube terminal.
8. 80108 13⁄4″ x 5⁄16″ Tube, mounts on (7) forming tube terminal for 1⁄4″ I.D. tubing.
9. 80109 Diaphragm-PC-2 Valve, molded neoprene, for replacement.
10. 80700 Tubing Splicer, 1⁄4″ or 3⁄16″ I.D. tubing to vaporizer outlet (N.A.D. Vapor).
11. 05503 Connector, 1⁄4″ I.D. tubing to 7⁄8″ diameter breathing tube.
12. 05504 Connector, 1⁄4″ tube x 23mm male. Connect 1⁄4″or 3⁄16″ tubing to vaporizer outlet.
13. 80113 Adapter, 15mm female to 5⁄8″ pediatric tube,or rolled neck bag.
14. 80114 Adapter, 15mm male to 5⁄8″ pediatric breathing tube.
15. 05505 Connector, 1⁄4″ tubing x G.H.T. connects 1⁄4″ tubing to standard garden hose.
18552 Connecting Tubing 3⁄16″ I.D. x 5′ for fresh gas supply.
18453 Connecting Tube 1⁄4″ I.D. x 4′ for waste gas discharge.
18711 Replacement Bag, 1 Liter.
18910 Replacement Bag, 1⁄2 Liter.
80115 Adapter, 22mm male to pediatric breathing tube.
80116 Adapter, 22mm female to pediatric breathing tube.
